multitool for cutting-stripping-crimping
Product Description
6 in 1 Multi-tool which combines:

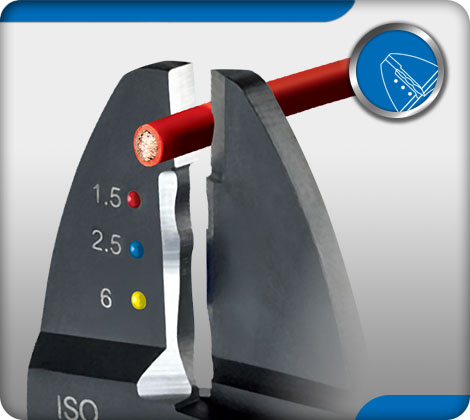

1.Cable cutting up to 6mm².

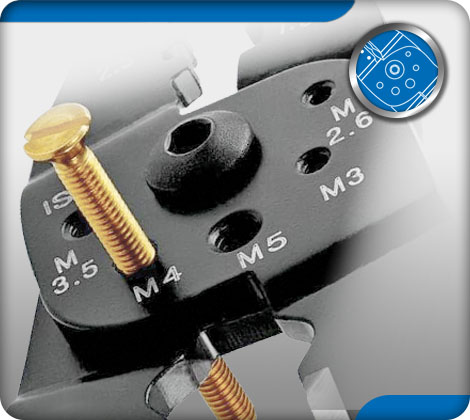

2.Screw cutting up to Μ5.

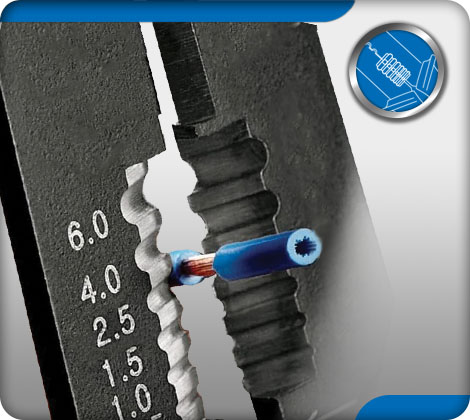

3.Cable stripping up to 6mm².

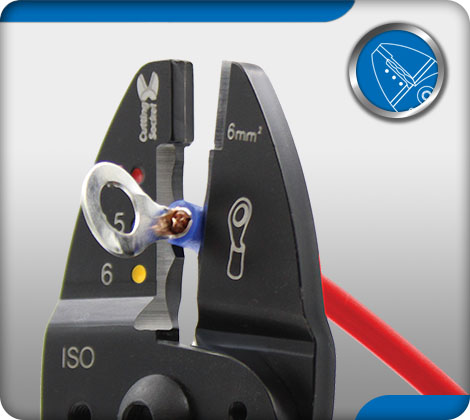

4.Insulated terminals crimping up to 6mm².

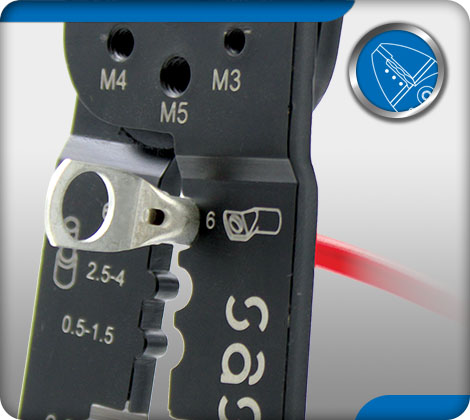

5.Cable lug crimping 6mm².

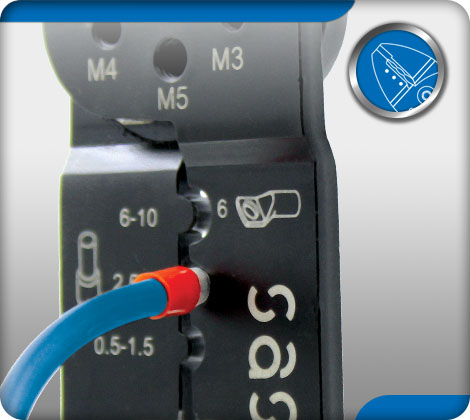

6.End sleeves crimping up to 10mm².
The multifunctional tool also features an ergonomic handle and robust construction, making it ideal for electricians who demand reliability and versatility in every task.
| Description | Cutting range (mm²) | Stripping range (mm²) | Screw cutting range | Lugs (mm²) |
Insulated terminals (mm²) |
End sleeves (mm²) |
| Multitool for cutting, stripping, crimping | 6 | 0.75-6.0 | Μ2.6 Μ3 Μ3.5 Μ4 Μ5 | 6 | 1.5 / 2.5 / 6.00 | 0.5-10 |
ONLY for cutting NYAF cables. Does not cut iron and steel. Not recommended for plastic. Does not cut and strip armoured cables. Periodic lubrication is recommended to maintain it.
Technical specifications
Cutting position:
Special cutting Socket for cables up to 6mm².
Crimping position 1:
Crimping sockets for insulated terminals up to 6mm².
Crimping position 2:
Crimping sockets for cable lug 6mm².
Crimping position 3:
Crimping sockets for end sleeves up to 10mm².
Screw cutting position:
Screw cutting socket with range from M2.6 up to M5.
Cable stripping position:
Stripping sockets for cables 0.75 up to 6mm².
