mini push-in wire connector – 8 poles
SKU: 100-30-025
Product Description
Certificates:

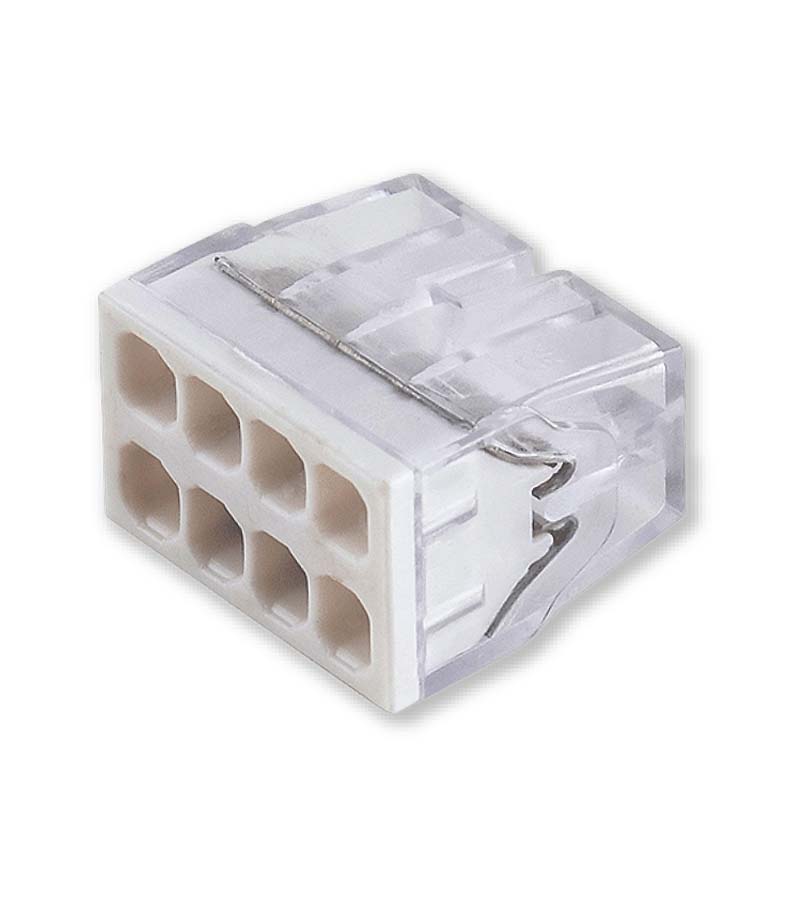

Mini push-in wire connectors in white color with 8 poles for rigid cables.
The mini push-in wire connector facilitates the connection of 8 rigid cables. It facilitates the connection of cables in junction boxes and in luminaires. It is suitable for rigid cables 0.5-2.5mm².

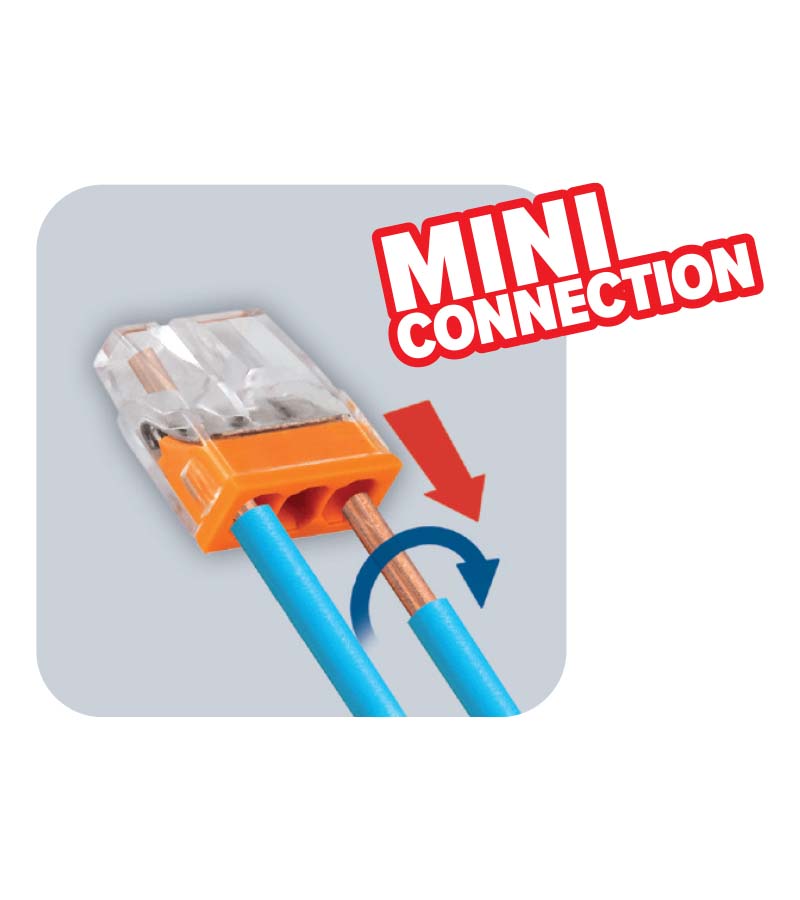

Mini push-in reusable wire connectors offer an optimal and efficient solution for any installation and reducing the termination time to minimum.
They are made with high quality transparent PC allowing visual inspection of proper insertion and have extremely compact size for use in terminations where space is extremely limited, providing safe connection.
Features:
✓ Insulation material: Polycarbonate (PC)
✓ Contact material: Tinned Copper
✓ Clamping spring material: AISI 301 stainless steel
Additional information
| poles | |
|---|---|
| stranded cable (mm²) | |
| Stripped length (mm) | |
| volts/ amps | |
| operating temperature | |
| PCS/ Pack. | 25/250 |
Filters Sort results
Reset Apply
Item | poles | cable stranded (mm²) | strip length (mm) | volts/ amps | operating temperature | pcs/ pack. |
|---|---|---|---|---|---|---|
6 | 0.5-2.5 | 11 | 450/ 24 | -40°C up to +105°C | 25/250 | |
8 | 0.5-2.5 | 11 | 450/ 24 | -40°C up to +105°C | 25/250 | |
5 | 0.5-2.5 | 11 | 450/ 24 | -40°C up to +105°C | 50/500 | |
2 | 0.5-2.5 | 11 | 450/ 24 | -40°C up to +105°C | 50/500 | |
3 | 0.5-2.5 | 11 | 450/ 24 | -40°C up to +105°C | 50/500 | |
4 | 0.5-2.5 | 11 | 450/ 24 | -40°C up to +105°C | 50/500 |
