lever wire connector for cable up to 4mm² – 5 poles
SKU: 100-30-029
Product Description
Certificates:

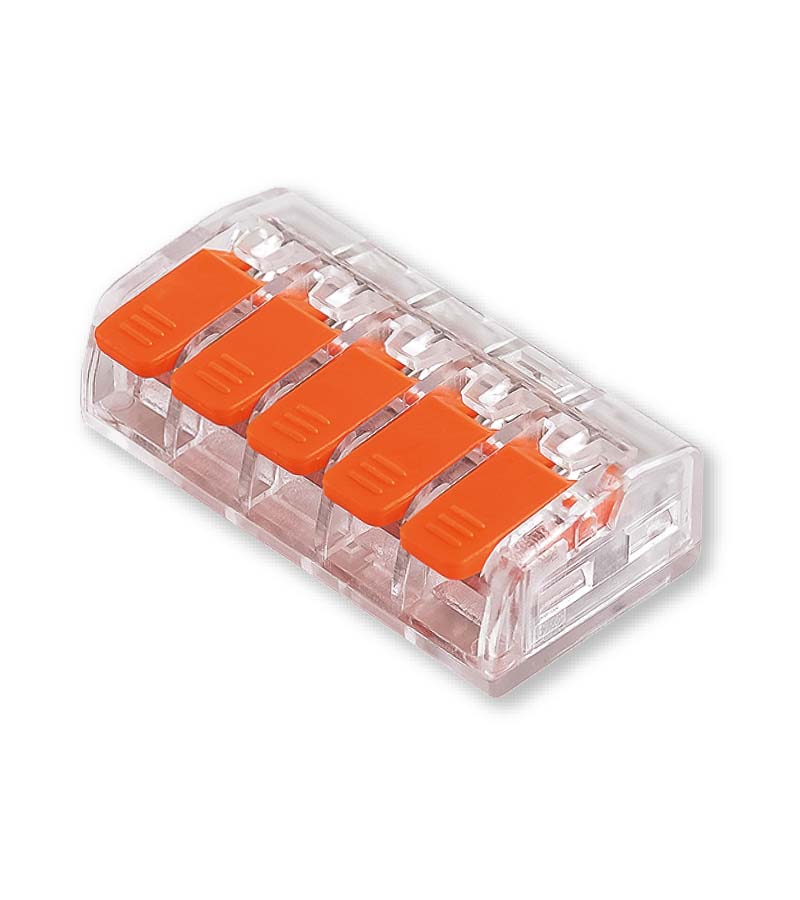

Lever wire connector with 5 poles for flexible and rigid cables.
It facilitates the connection of cables in junction boxes and in luminaires. It is suitable for flexible cables 0.2-2.5mm² and rigid cables 0.2-4mm².
Lever reusable wire connectors offer optimal and efficient connections for any installation with the easy-to-use lever function.
They are made of high quality transparent PC allowing visual inspection of cable insertion and they are able to combine different conductor types easy and quick without the need of extra tools.
Features:
✓ Insulation material: Polycarbonate (PC)
✓ Contact material: Tinned Copper
✓ Clamping spring material: AISI 301 stainless steel
✓ Connection technology: Lever
Additional information
| poles | |
|---|---|
| cable flexible (mm²) | 0.2-2.5 |
| stranded cable (mm²) | |
| Stripped length (mm) | |
| volts/ amps | |
| operating temperature | |
| PCS/ Pack. | 50/500 |
Filters Sort results
Reset Apply
Item | poles | flexible cable (mm²) | cable stranded (mm²) | strip length (mm) | volts/ amps | operating temperature | pcs/ pack. |
|---|---|---|---|---|---|---|---|
5 | 0.2-4 | 0.2-6 | 11 | 600/41 | -40°C up to +105°C | 10/100 | |
5 | 0.2-2.5 | 0.2-4 | 11 | 450/32 | -40°C up to +105°C | 50/500 | |
4 | 0.2-2.5 | 0.2-4 | 11 | 450/32 | -40°C up to +105°C | 50/500 | |
3 | 0.2-2.5 | 0.2-4 | 11 | 450/32 | -40°C up to +105°C | 50/500 | |
2 | 0.2-2.5 | 0.2-4 | 11 | 450/32 | -40°C up to +105°C | 50/500 | |
2 | 0.2-4 | 0.2-6 | 11 | 600/41 | -40°C up to +105°C | 10/100 | |
3 | 0.2-4 | 0.2-6 | 11 | 600/41 | -40°C up to +105°C | 10/100 |
