lever in-line wire connector – 2 poles
Product Description
Certificates:

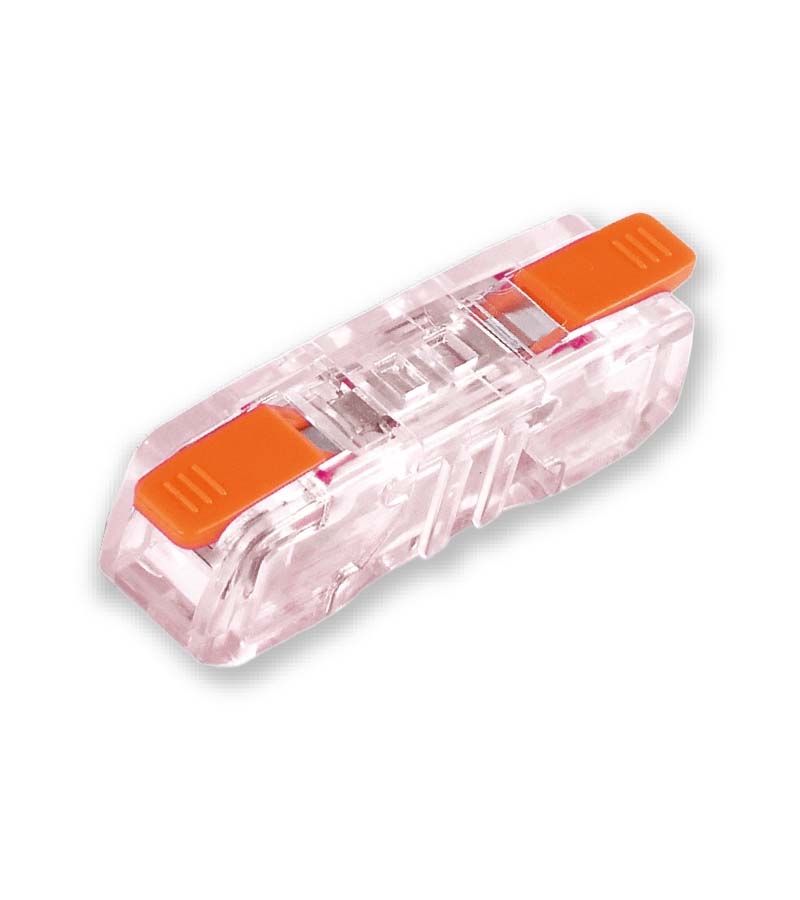

Lever in-line wire connector with 2 poles for flexible and rigid cables.
It facilitates the connection of cables in junction boxes and in luminaires. It is suitable for flexible cables 0.2-1.5mm² and rigid cables 0.2-2.5mm².

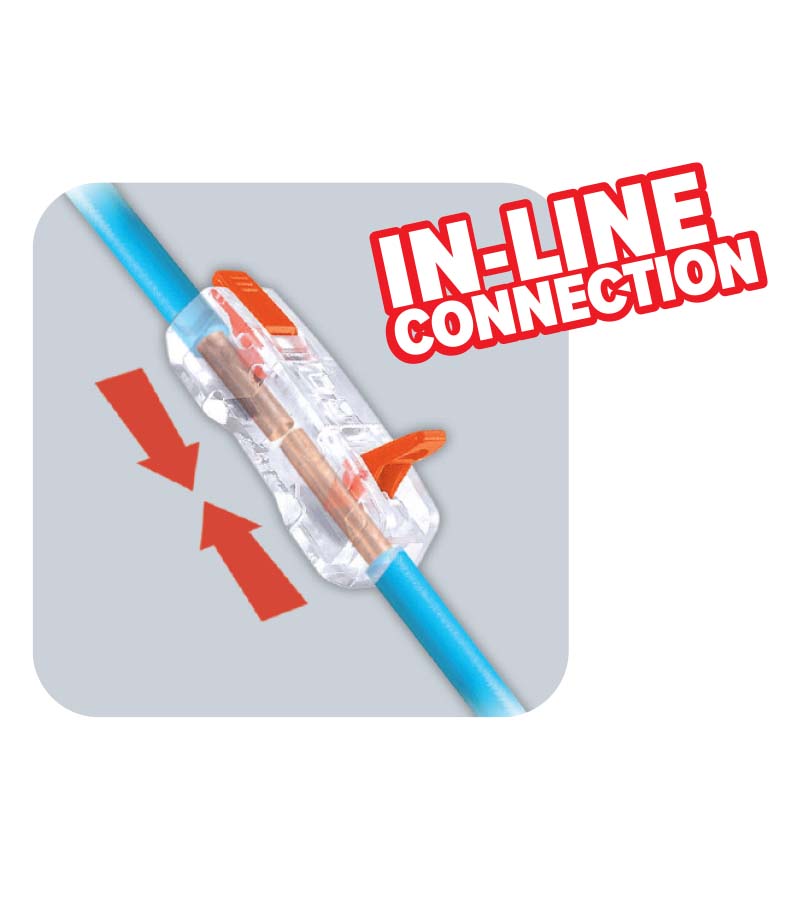

Lever in-line reusable wire connectors offer optimal and efficient connections for any installation with the easy-to-use lever function.
They are made of high quality transparent PC allowing visual inspection of cable insertion. Their slim design makes them the ideal solution in tight areas where space is limited
Features:
✓ Insulation material: Polycarbonate (PC)
✓ Contact material: Tinned Copper
✓ Clamping spring material: AISI 301 stainless steel
✓ Connection technology: Lever
✓ Slim design, saving space in tight areas
Additional information
| poles | |
|---|---|
| cable flexible (mm²) | 0.2-1.5 |
| stranded cable (mm²) | |
| Stripped length (mm) | |
| volts/ amps | |
| operating temperature | |
| PCS/ Pack. | 10/100 |
Item | poles | flexible cable (mm²) | cable stranded (mm²) | strip length (mm) | volts/ amps | operating temperature | pcs/ pack. |
|---|---|---|---|---|---|---|---|
6 | 0.2-1.5 | 0.2-2.5 | 11 | 450/ 24 | -40°C up to +105°C | 5/50 | |
4 | 0.2-1.5 | 0.2-2.5 | 11 | 450/ 24 | -40°C up to +105°C | 10/100 | |
2 | 0.2-1.5 | 0.2-2.5 | 11 | 450/ 24 | -40°C up to +105°C | 10/100 |
