IP68 waterproof fixed connector – simple type – 5 poles
SKU: 100-30-039
Product Description
Certificates:

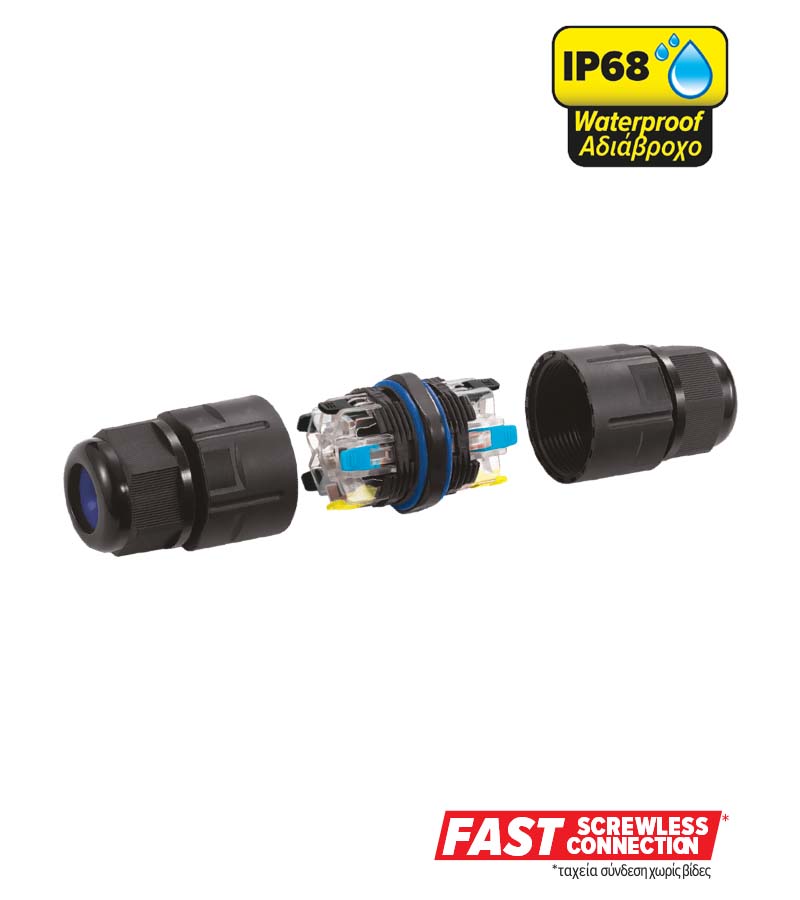

IP68 waterproof fixed connector - simple type - with 5 poles for flexible cables.
It facilitates the connection of cables in junction boxes and in luminaires. It is suitable for flexible cables 0.5-1.5mm².
IP68 waterproof connectors are specially designed for outdoor applications that require space-saving and high water and dust resistance.
Their unique robust construction with built-in connectors and screwless function makes any installation safe, easy and fast.
Features:
✓ Fast screwless connection designed for ease of use.
✓ Special design for a waterproof and dustproof connection.
✓ Connectors with levers.
✓ Connectors of different types for a variety of applications.
Additional information
| description | |
|---|---|
| poles | |
| cable flexible (mm²) | 0.5-1.5 |
| Stripped length (mm) | |
| connector width/ height (mm) | |
| volts/ amps | |
| operating temperature | |
| PCS/ Pack. | 1/5 |
Filters Sort results
Reset Apply
Item | Description | Poles | flexible cable (mm²) | strip length (mm) | Connector width/ height (mm) | volts/ amps | operating temperature | pcs/ pack. |
|---|---|---|---|---|---|---|---|---|
simple | 5 | 0.5-1.5 | 11 | 127 x 35.5 | 250-450/16 | -40°C up to +85°C | 1/5 | |
simple | 3 | 0.5-1.5 | 11 | 240 x 39 | 250-450/16 | -40°C up to +85°C | 1/5 | |
type-T | 3 | 0.5-1.5 | 11 | 146 x 92.5 | 250-450/16 | -40°C up to +85°C | 1/5 | |
type-T | 5 | 0.5-1.5 | 11 | 164 x 104 | 250-450/16 | -40°C up to +85°C | 1/5 | |
type-cross | 3 | 0.5-1.5 | 11 | 146 x 146 | 250-450/16 | -40°C up to +85°C | 1/5 | |
type-cross | 5 | 0.5-1.5 | 11 | 164 x 164 | 250-450/16 | -40°C up to +85°C | 1/5 |
