Electro-hydraulic crimping tool for cable lugs16-300mm²

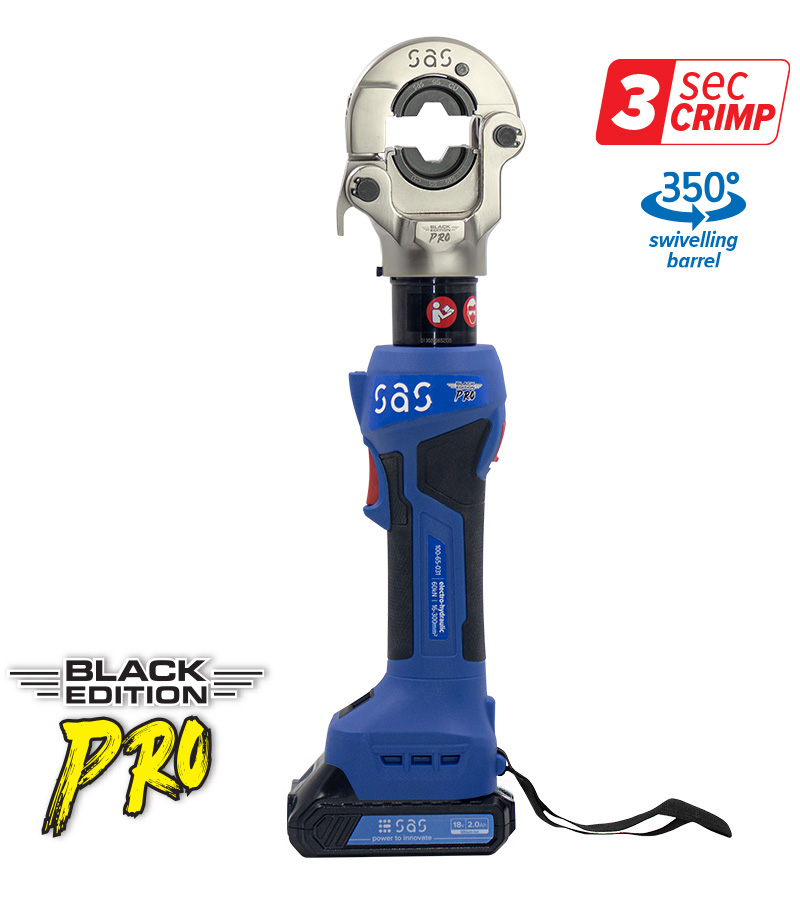

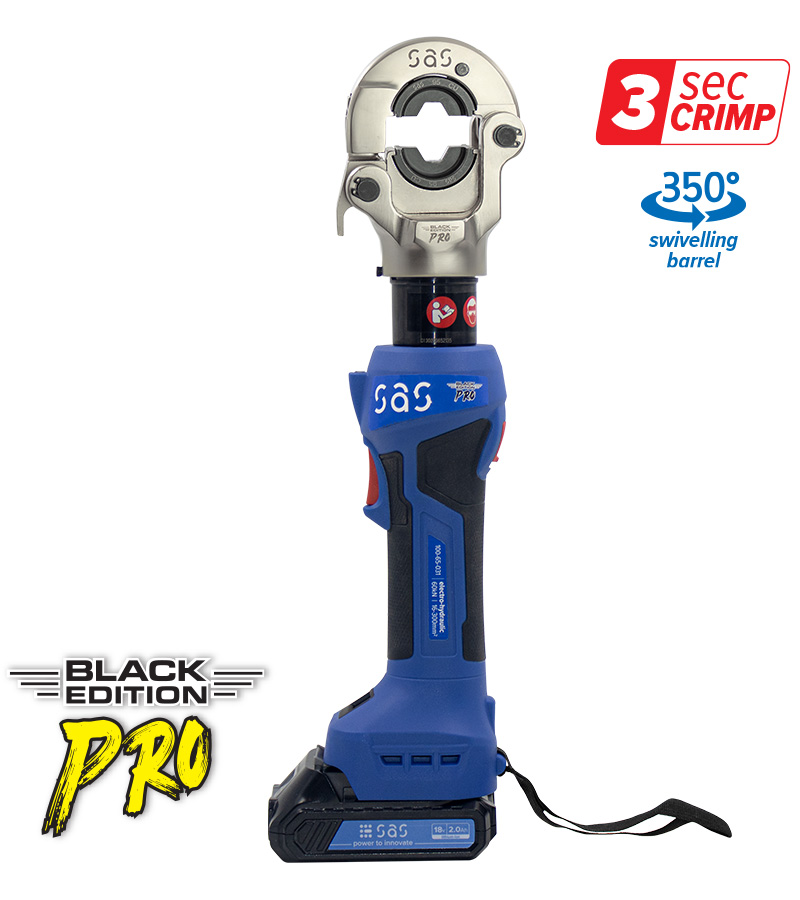

100 65 031 WITH LABELS

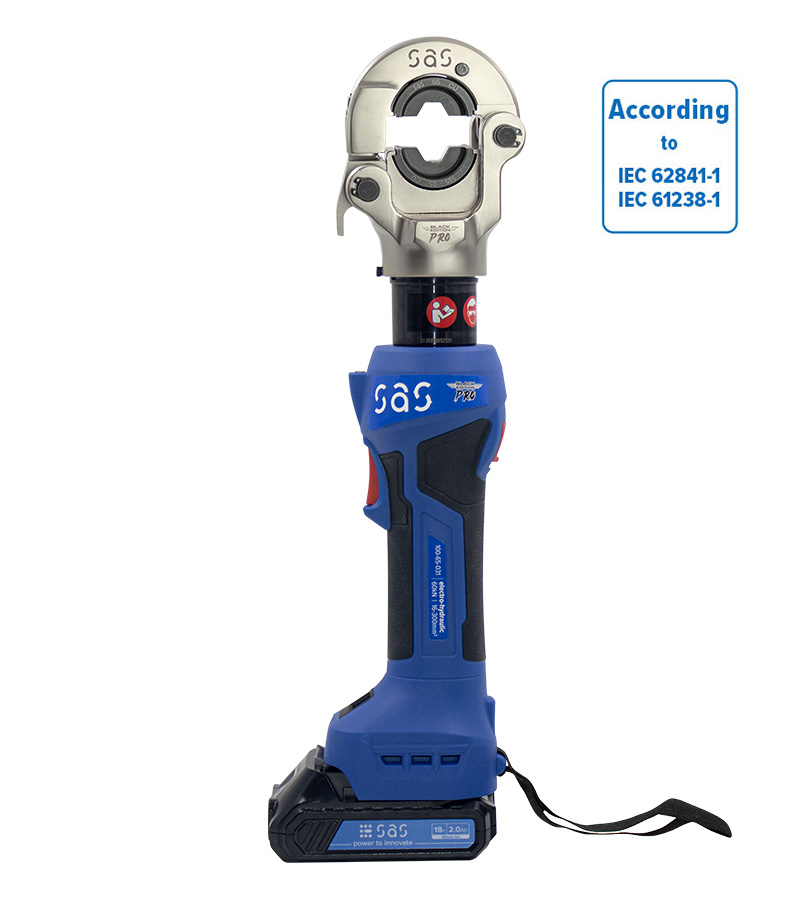

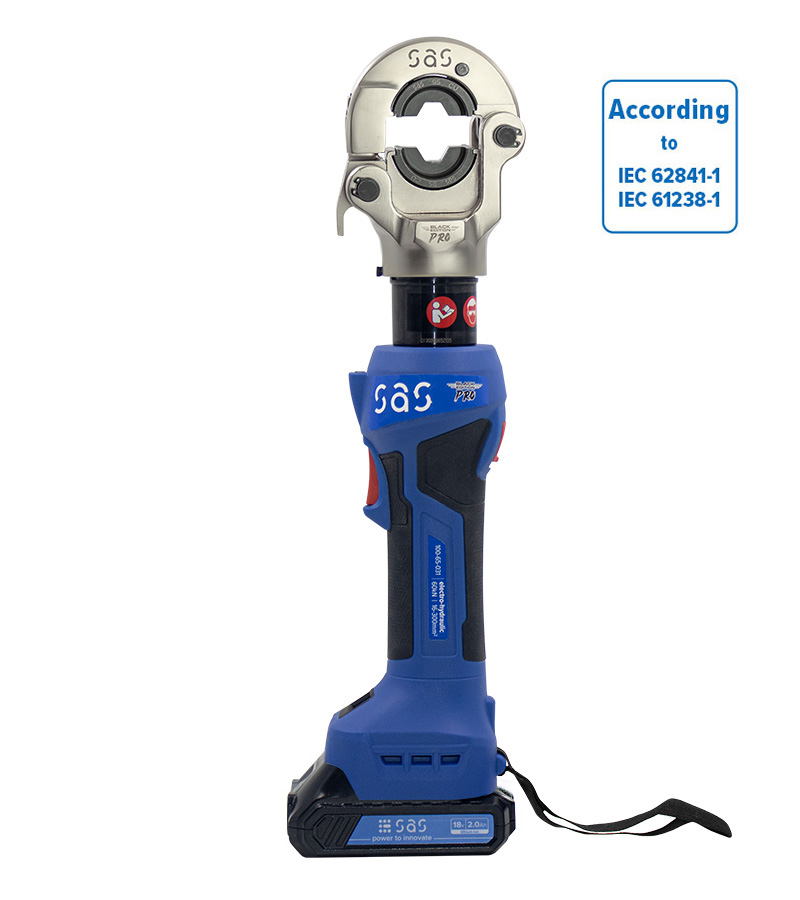

100 65 031 according to IEC 62841 1 & IEC 61238 1

100 65 031 MATRIXES

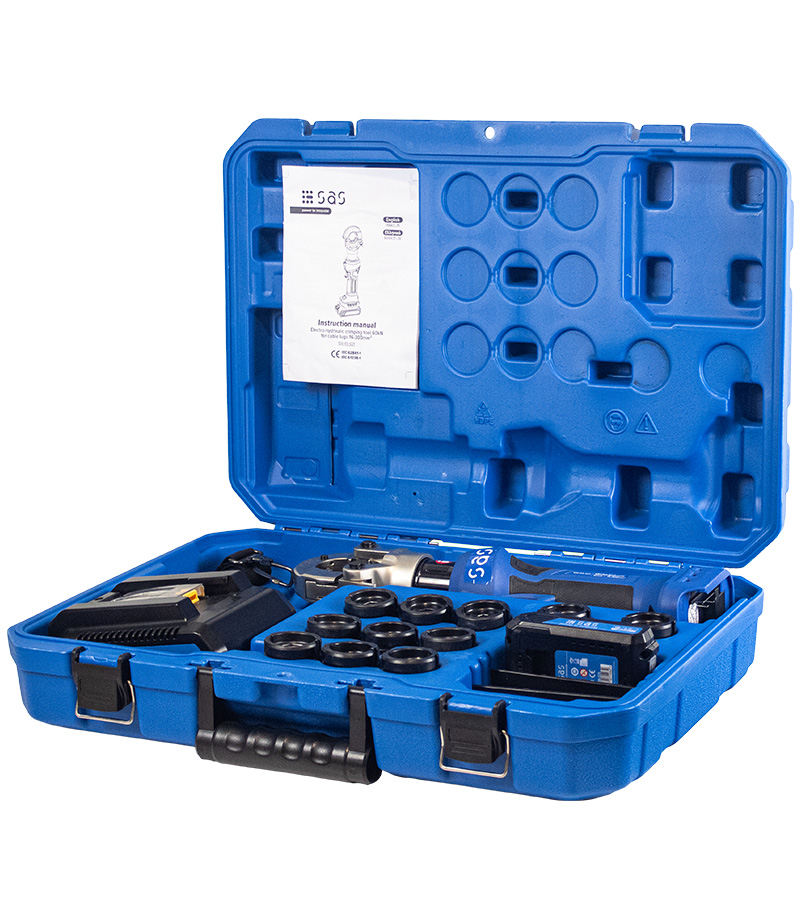

100 65 031 HARDCASE

100 65 031 WITH LABELS

100 65 031 according to IEC 62841 1 & IEC 61238 1

100 65 031 MATRIXES

100 65 031 HARDCASE

SKU: 100-65-031

Description

Product Description

The Electro-Hydraulic Crimping Tool is a high-performance tool for crimping copper cable lugs from 16mm² to 300mm², delivering power, precision, and portability.

Designed for professionals working on demanding electrical construction sites, this tool is powered by a Li-ion battery and driven by a motor controlled via a microcontroller (MCU), ensuring consistent performance and reliable safety.

It features an OLED display and a high-pressure hydraulic system.

Description	crimping range (mm²)	rated pressure (kN)	Crimping dies (pcs)	Weight (kg)	length (mm)
Electro-hydraulic crimping tool	16-300	60	11	3.5	420

*Rechargeable batteries available. Product code: 100-86-070

SKU: 100-65-031 Category: Crimping tools

Technical specifications

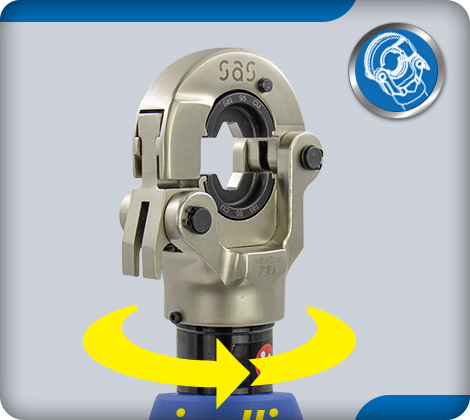

100 65 031 FEAT01

350° rotating head :

The tool head rotates up to 350° for improved access in confined workspaces.

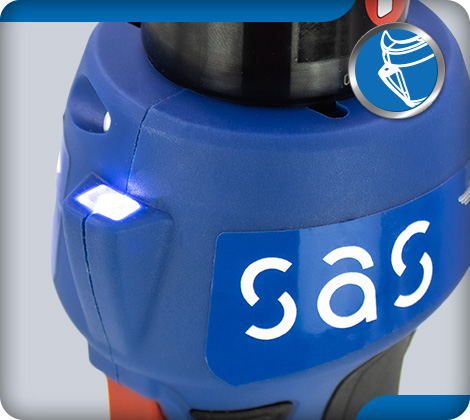

100 65 031 FEAT02

LED work light:

Provides illumination during operation.

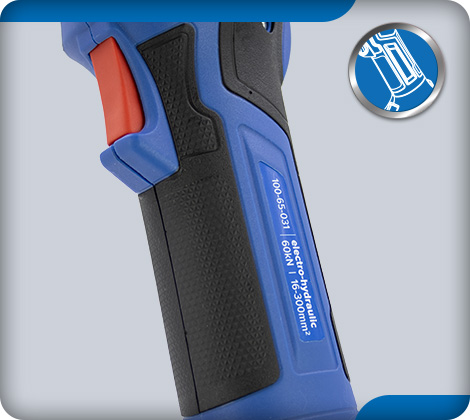

100 65 031 FEAT03

Anti-slip handle:

For non-slipping grip during usage.

100 65 031 FEAT04

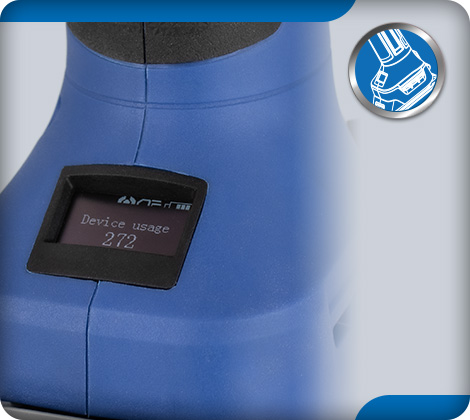

OLED display:

Displays crimping cycles, battery power, and
error information

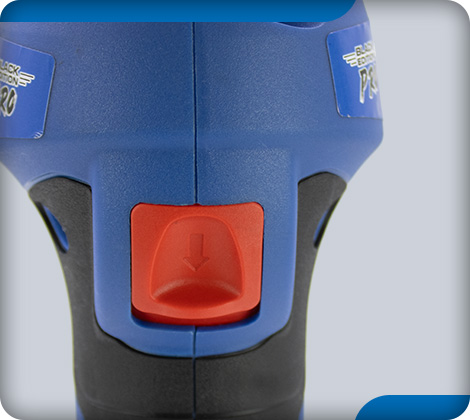

100 65 031 FEAT05

Retract button:

Manually retracts the piston in case of an incorrect operation.

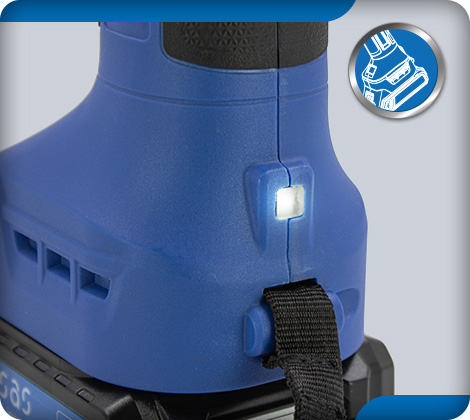

100 65 031 FEAT06

LED status indicator:

Shows tool status and warnings.

100 65 031 FEAT07

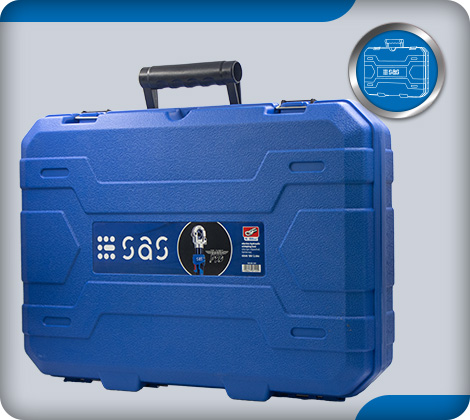

Tool storage hardcase:

Hard plastic carrying case to protect the tool from drops and impacts.

100 65 031 FEAT08

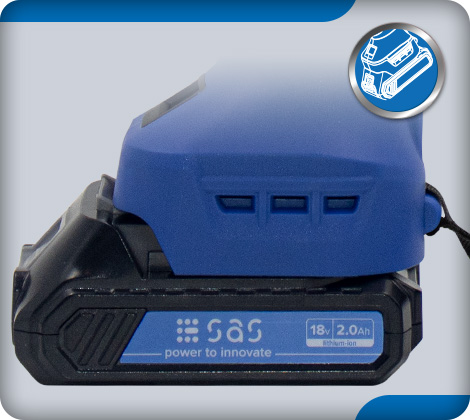

Rechargeable battery:

Rechargeable 18V 2.0Ah lithium battery with a charging time of 60–90 minutes (charger included).

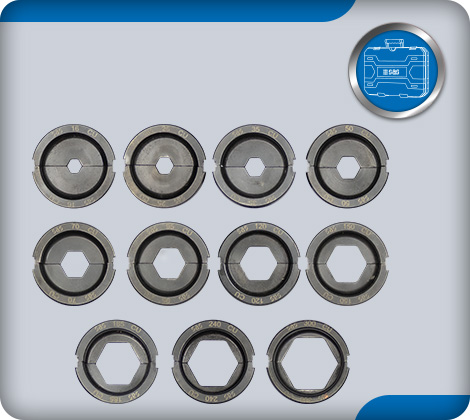

100 65 031 FEAT09

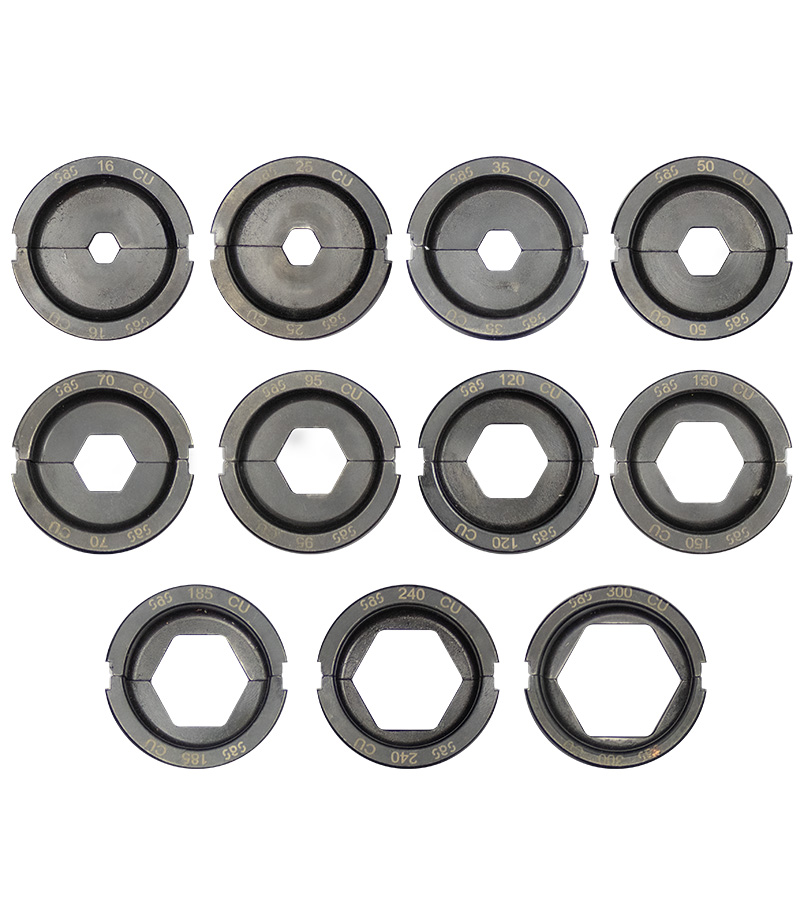

Interchangeable dies – 11pcs:

Durable interchangeable dies for cable lugs 16-300mm²
(16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300).
