Crimping tool for MC4 terminals (male & female) 2.5 – 6mm²
€54.90
SKU: 100-65-015Product Description

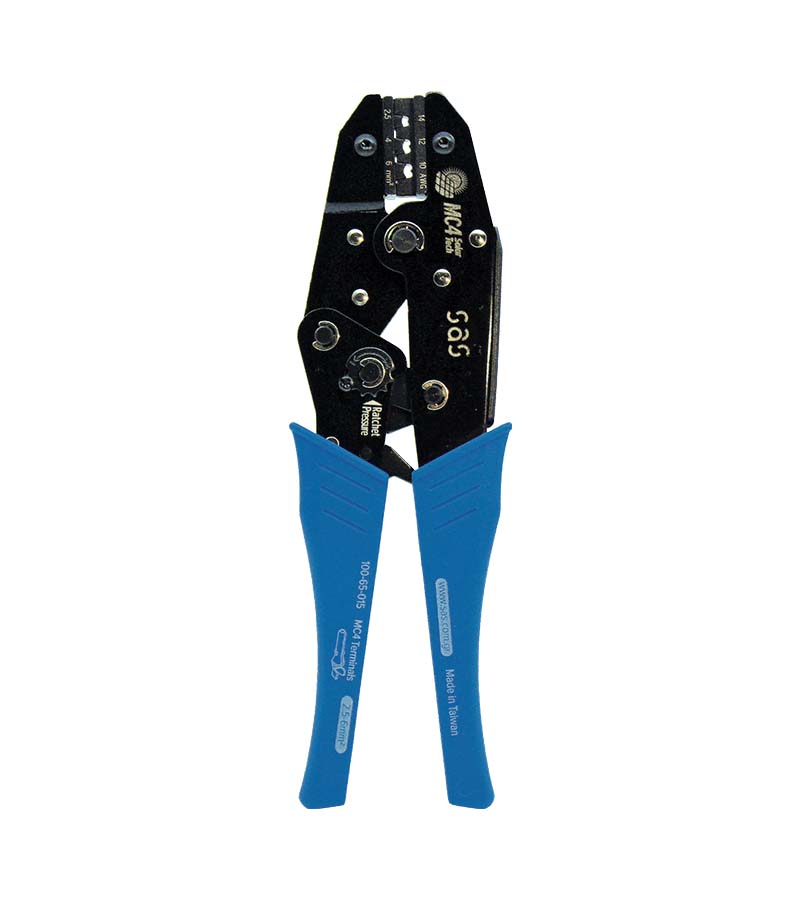

Crimping tool with ratchet mechanism for MC4 terminals 2.5-6mm² (male and female).
Precise and reliable crimping for guaranteed electrical installations!
| Matrix type | Weight (kg) |
Length (mm) |
Range (mm²) |
| With Double die | 0.6 | 230 | 0.25-6 |
Technical specifications

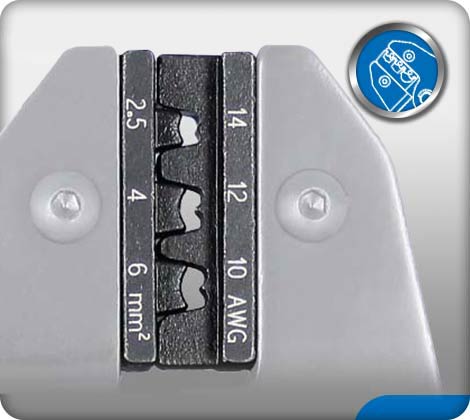

Crimps Matrix:
Special Matrix with Double die that folds and locks the ears on the cable.
Ratchet mechanism:
Special mechanism with ratchet and spring for controlling the pressure on the end-sleeve without requiring muscular force with excellent precision on the crimping.
Pressure intensity adjuster:
Unscrew the retaining screw and turn the gear screw left or right to reduce or increase the tension and screw the retaining screw again!
Ergonomic pressure handles:
Excellent Ergonomic handles with a designed Angle Pressure that allows use with ONLY 1 hand!

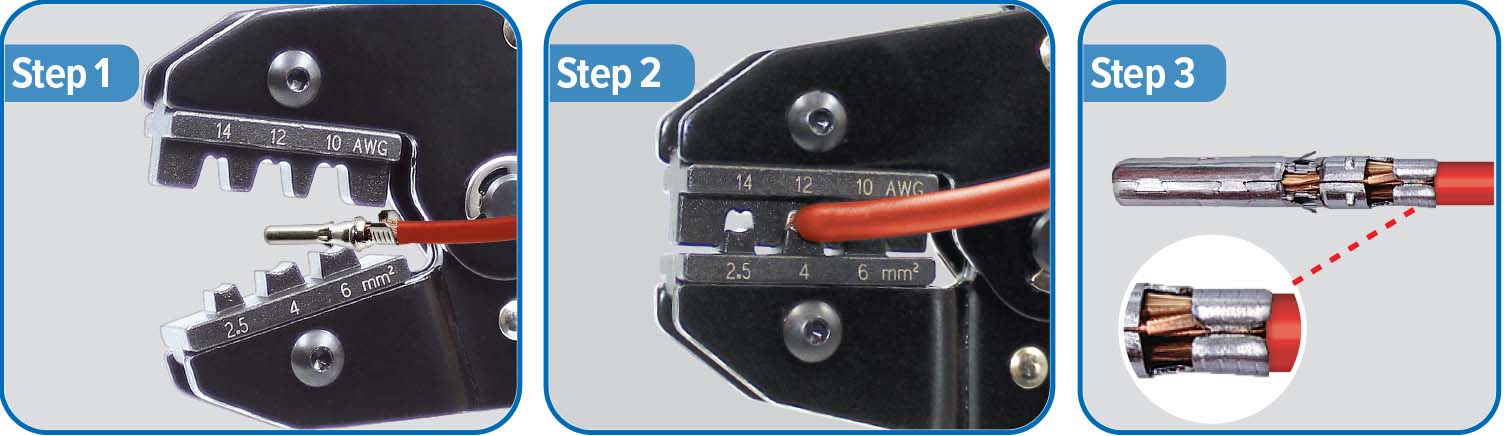

Tool use

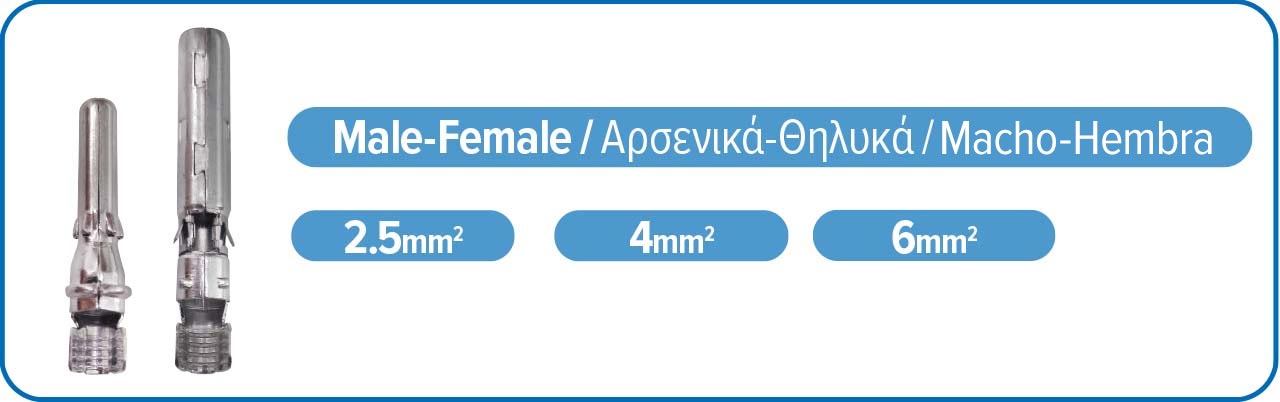

Suitable for MC4 terminals:
