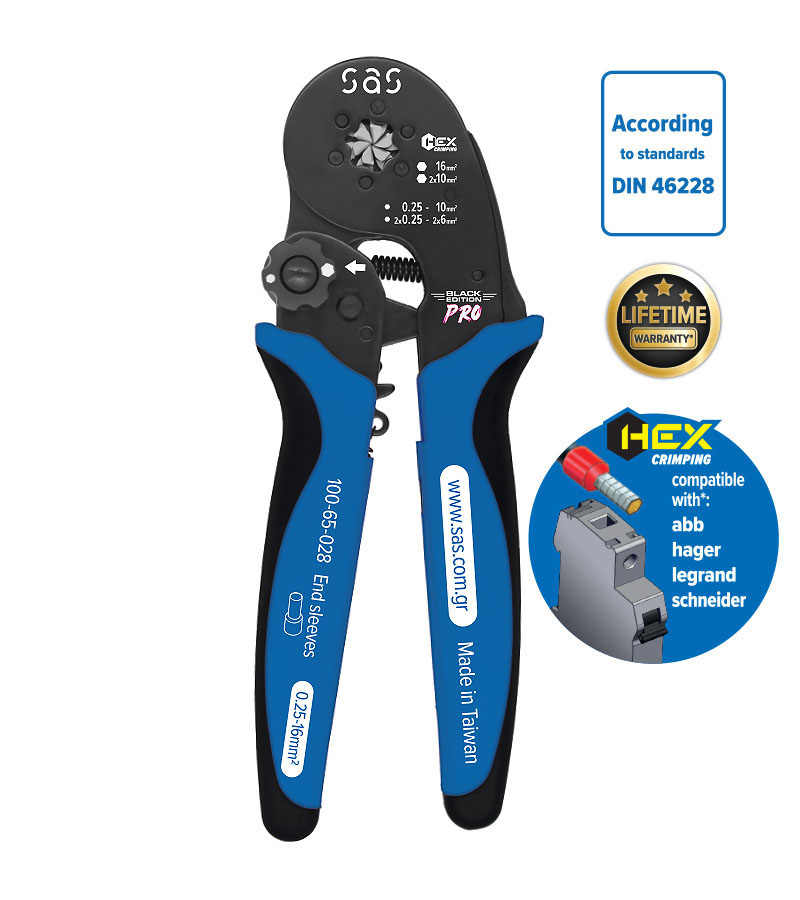

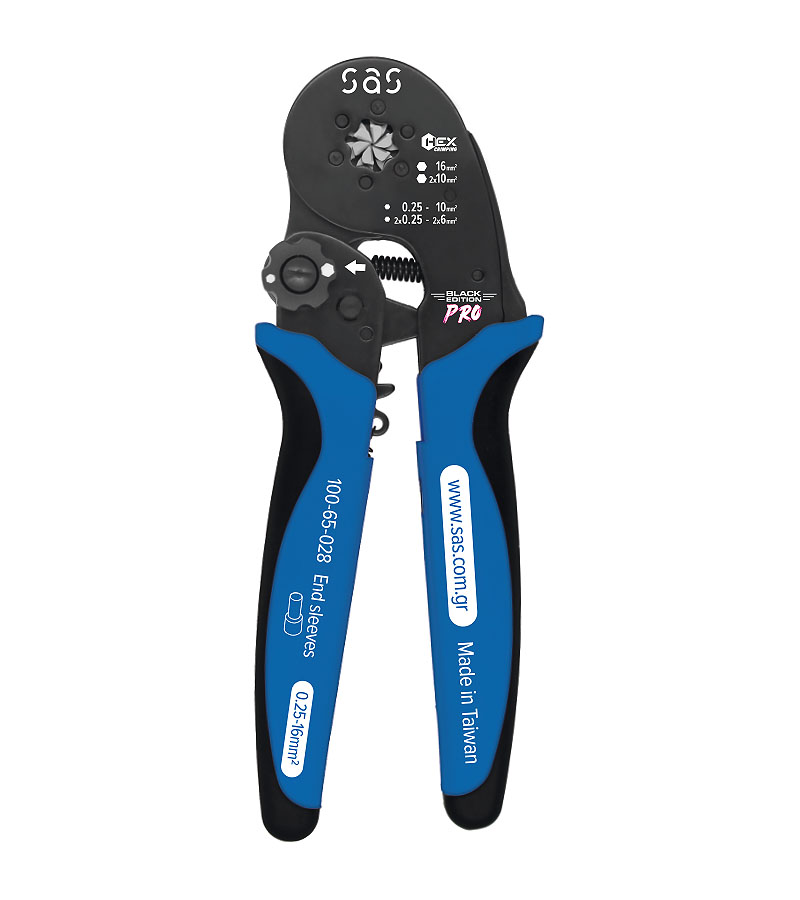

Rotating Grinder Crimping Tool For Single/Double End Sleeves 0.25 – 16mm² and 2X 0.25 – 2X 10mm²
€119.00
SKU: 100-65-028Product Description
Crimp tool with ratchet mechnism for single end sleeves 0.25 - 16mm² and double end sleeves 2X 0.25 - 2X 10mm². Precise and reliable crimping for guaranteed electrical installations!
| Type matirx | Weight (kg) |
Length (mm) |
Range (mm²) |
| Special 6 die | 0.4 | 190 | 0.25-16 2x0.25-2x10 |

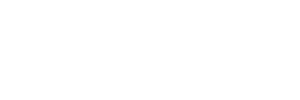

Range adjustment:
1. Pull the gear up
2. Turn the switch left or right to your desired range
⬢ 16mm²
⬢ 2x10mm²
⬢ 0.25-10mm²
⬢ 2x0.25-2x6mm²
3. Release the gear and it will make a “click” sound
Technical specifications

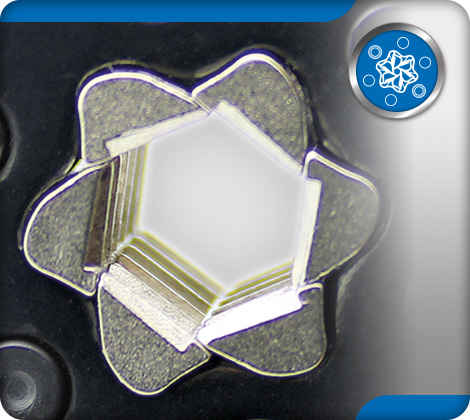

Hex crimping matrix:
Special hex Matrix that crimps the copper barrel of the end-sleeve in Hexagonal shape ensuring top professional connection and retention on the cable.

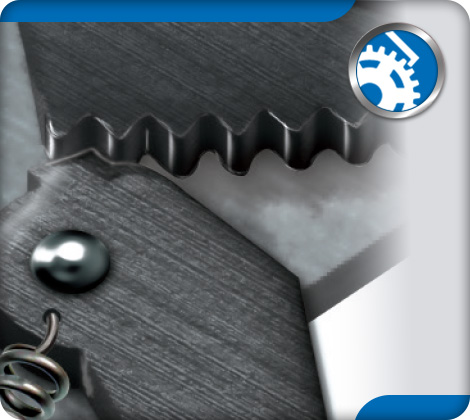

Ratchet mechanism:
Special mechanism with ratchet and spring for controlling the pressure on the terminal without requiring muscular force with excellent precision on
the crimping.

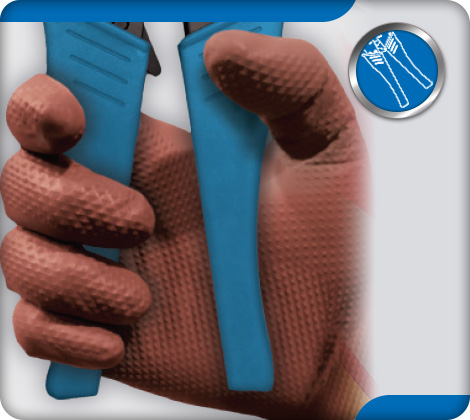

Ergonomic pressure handles:
Excellent Ergonomic handles with designed Angle Pressure that allows use with ONLY 1 hand!

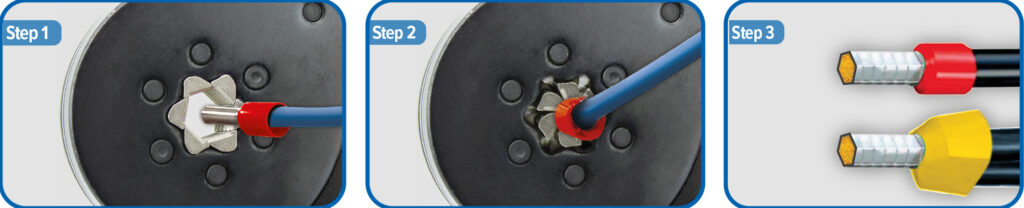

Tool usage

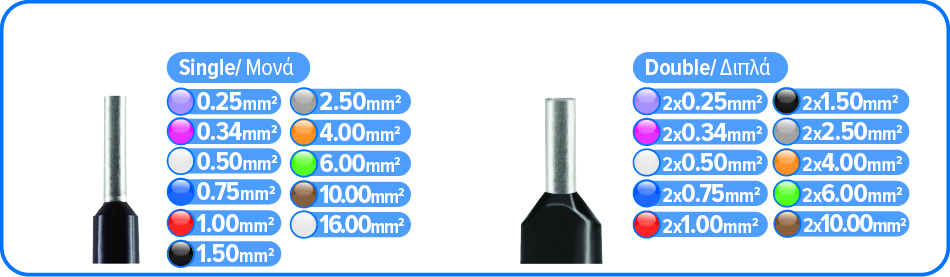

Suitable for End sleeves:
