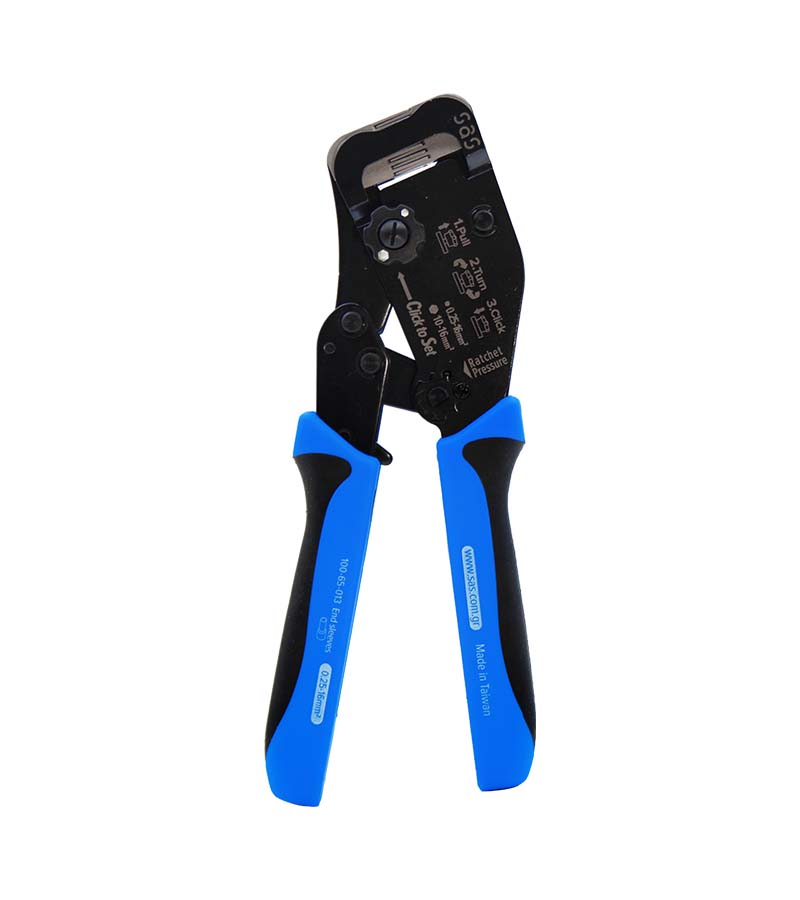

Front grinder crimping tool for single/double end sleeves 0.25-16mm² and 2X0.25-2X6mm²
€119.00
SKU: 100-65-013Product Description
Front crimp tool with ratchet mechnism for single end sleeves 0.25 - 16mm² and double end sleeves 2X 0.25 - 2X 6mm².
Precise and reliable crimping for guaranteed electrical installations!
| Matrix type | Weight (kg) |
Length (mm) |
Range (mm²) |
| Special 4 die | 0.6 | 213 | 0.25-16 2x0.25-2x6 |
Technical specifications

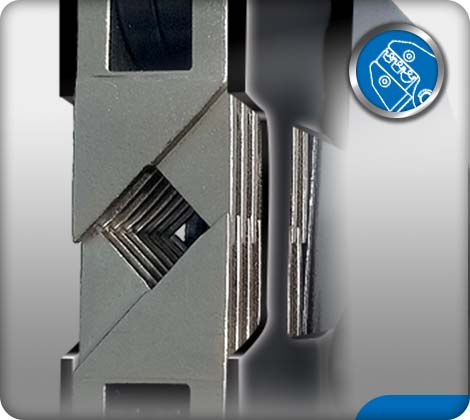

Crimps Matrix:
Special 4 die Matrix that crimps the copper barrel of the end-sleeve in Rectangular shape ensuring an excellent connection and retention on the cable.
Ratchet mechanism:
Special mechanism with ratchet and spring for controlling the pressure on the end-sleeve without requiring muscular force with excellent precision on the crimping.

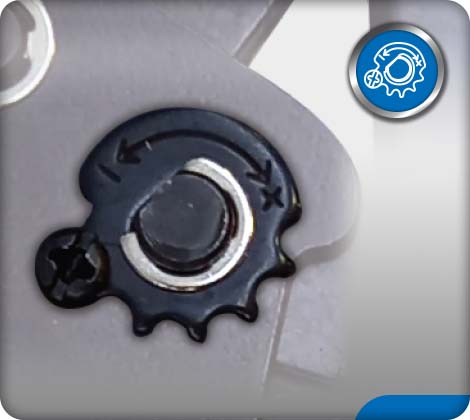

Pressure intensity adjuster:
Unscrew the retaining screw and turn the gear screw left or right to reduce or increase the tension and screw the retaining screw again!
Ergonomic pressure handles:
Excellent Ergonomic handles with a designed Angle Pressure that allows use with ONLY 1 hand!

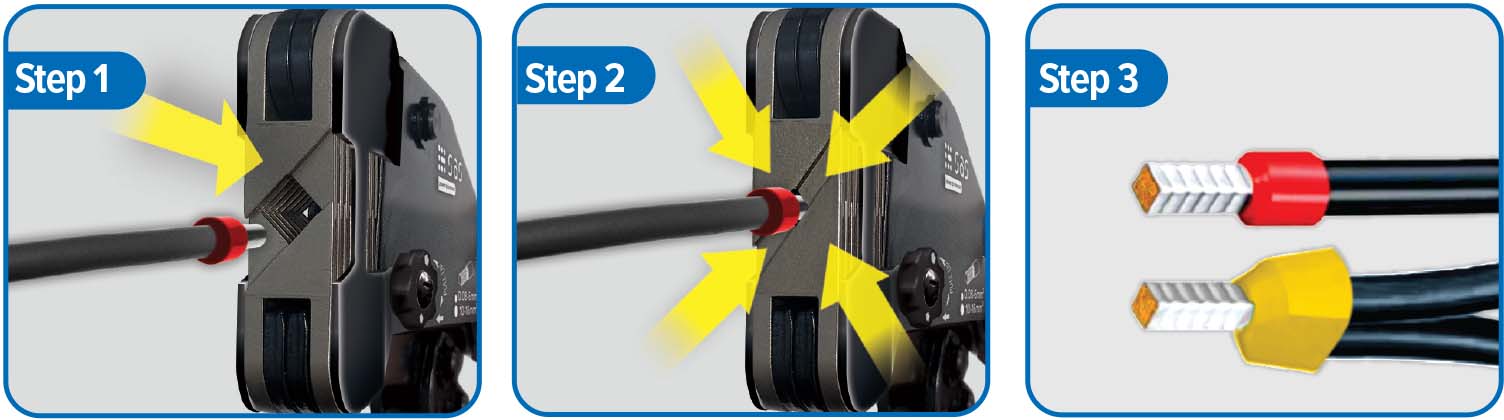

Tool use

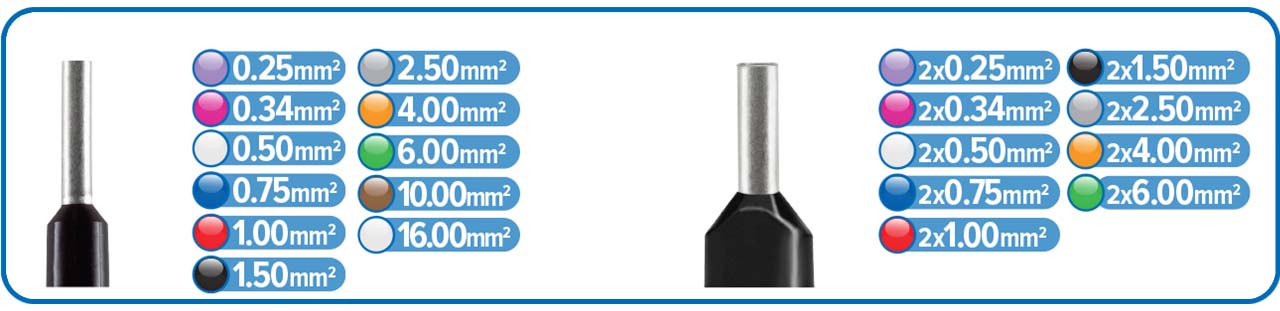

Suitable for single/double end sleeves:
