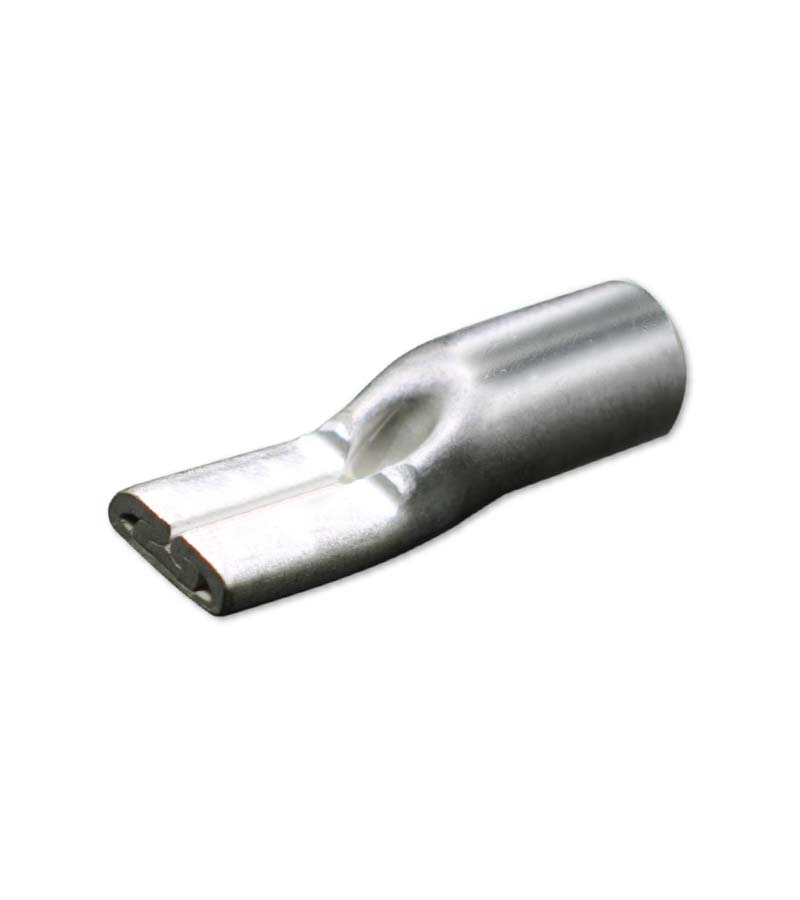

Cable lug with flat palm 10mm²
SKU: AK-AK-541
Product Description
Certificates:
Features:
✓ Flat palm for application on circuit breakers with limited space terminal blocks
✓ Specially designed insert for easy cable entry
✓ Heavy duty terminal with reinforced body
✓ Material: Copper T2/C11000
✓ Purity of Copper (Cu): 99,99%
✓ Coating: Tin plated
Matrix crimping shape
Filters Sort results
Reset Apply

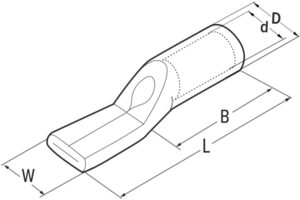

Item | Cable (mm²) | D (mm) | d (mm) | W (mm) | B (mm) | L (mm) | Stripped length (mm) | PCS/Pack |
|---|---|---|---|---|---|---|---|---|
10 | 6.8 | 4.7 | 5 | 13 | 25 | 8.2 | ||
16 | 7.8 | 5.6 | 6 | 16 | 31 | 10.20 | 10/100 | |
25 | 9.4 | 7.1 | 7 | 16 | 34 | 10.70 | 10/100 | |
35 | 11.3 | 8.7 | 9 | 24 | 42 | 15.50 | 10/100 | |
50 | 12.6 | 9.8 | 10 | 25 | 46 | 15.50 | 5/20 | |
70 | 14.7 | 11.5 | 15 | 28 | 50 | 17.50 | 5/20 | |
95 | 16.9 | 13.5 | 15 | 39 | 60 | 28 | 5/20 | |
120 | 20 | 15.6 | 21 | 43 | 65 | 32 | 4/20 |
